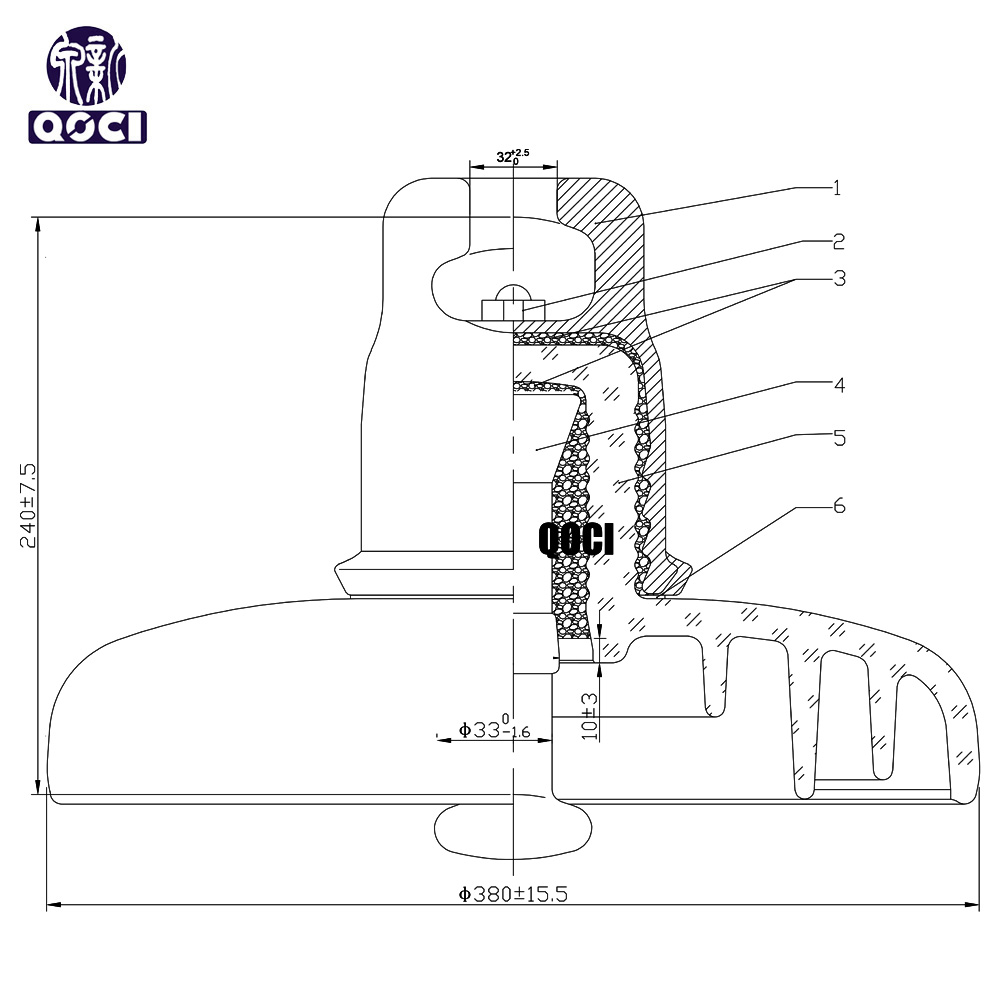

U550B (240/380/600) Glass Insulator

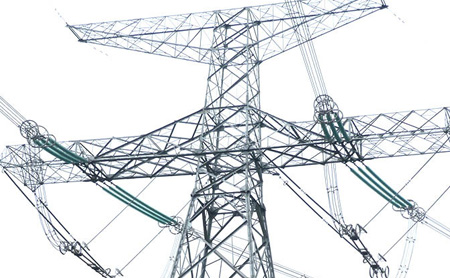

- As a representative of large-tonnage toughened glass insulators, the U550B, with its high mechanical strength of 550kN, long creepage distance of 620mm, and the unique self-shattering upon zero-value maintenance-free characteristic of glass insulators, has become the core choice for ±800kV UHV DC transmission lines. It is providing reliable insulation protection for major national energy strategic projects such as the "West-to-East Power Transmission" initiative.
- Its long creepage distance of 620mm makes it particularly suitable for use in severely polluted, coastal, and industrial areas, effectively preventing the occurrence of "pollution flashover" accidents.
- Brand: QOCI
- Catalog ID: UG550B240/620N
- Type: Standard Type
- Material: Glass Dielectric ， Forged steel cap & pin
- Place of Origin: Jiangxi
Product Information
IEC Stand :U550B
| U | Disc Suspension Insulator |
| 550 | Mechanical failing load of 550kN |
| B | Ball And Socket Type |
Mechanical values
|
Mechanical failing load |
550（530）kN |
|
Mechanical residual strength |
275（265）kN |
Electrical Values
|
Dry power frequency withstand voltage |
70kV |
|
Wet power frequency withstand voltage |
55kV |
|
Dry lightning impulse withstand voltage |
140kV |
|
Power frequency puncture voltage |
130kV |
Radio-influence Voltage
|
RIV test voltage rms to ground Maximum RIV at 1000 kHz: |
10 kV 50 μV |
|
Corona visual lest P/C |
18/22 KV |
|
Power frequency electric arc voltage |
0.12s/20kA |
Packing information
|
Net weight |
21.5kg |
|
Carton Quantity: |
2/3pcs |
Industry Standard(s)
Manufactured accordance with IEC60383-1:2023，MOD / GB/T1001.1
