U70BS (127/255/320) Glass Insulator

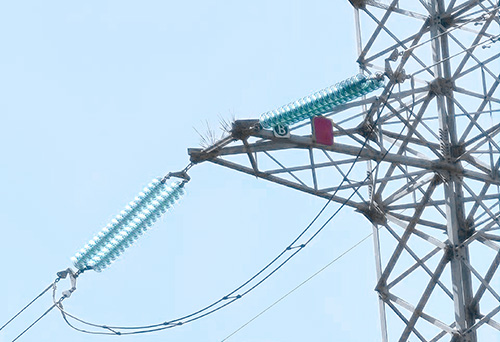

70kN glass insulator is a component used to suspend power lines on high-voltage poles or towers.
- To secure the power line like a safety rope: It withstands the weight of the wire itself and the immense tension from wind and ice, ensuring line stability.
- To isolate electrical current like a firewall: It prevents high-voltage electricity from directly grounding through the tower, ensuring safe power transmission.
- Brand: QOCI
- Catalog ID: UG70B127/320N
- Type: Standard Type
- Material: Glass Dielectric ， Forged steel cap & pin
- Place of Origin: Jiangxi
Product Information
IEC Stand :U70BS
| U | Disc Suspension Insulator |
| 70 | Mechanical failing load of 70kN |
| B | Ball And Socket Type |
| S | Shorter steel pin ，Assembled to achieve a product structural height of 127mm. |
Dimensional data
|
Spacing(S) |
127mm |
|
Diameter(D) |
255mm |
|
Creepage distance (L) |
320mm |
|
Socket coupling |
16mm |
Mechanical values
|
Mechanical failing load |
70kN |
|
Mechanical residual strength |
56kN |
Electrical Values
|
Wet power frequency withstand voltage |
40kV |
|
Dry lightning impulse withstand voltage |
100kV |
|
Power frequency puncture voltage |
130kV |
Radio-influence Voltage
|
RIV test voltage rms to ground Maximum RIV at 1000 kHz: |
10 kV 50 μV |
|
Corona visual lest P/C |
18/22 KV |
|
Power frequency electric arc voltage |
0.12s/20kA |
Packing information
|
Net weight |
3.5kg |
|
Carton Quantity: |
6pcs |
Industry Standard(s)
Manufactured accordance with IEC60383-1:1993，MOD / GB/T1001.1
