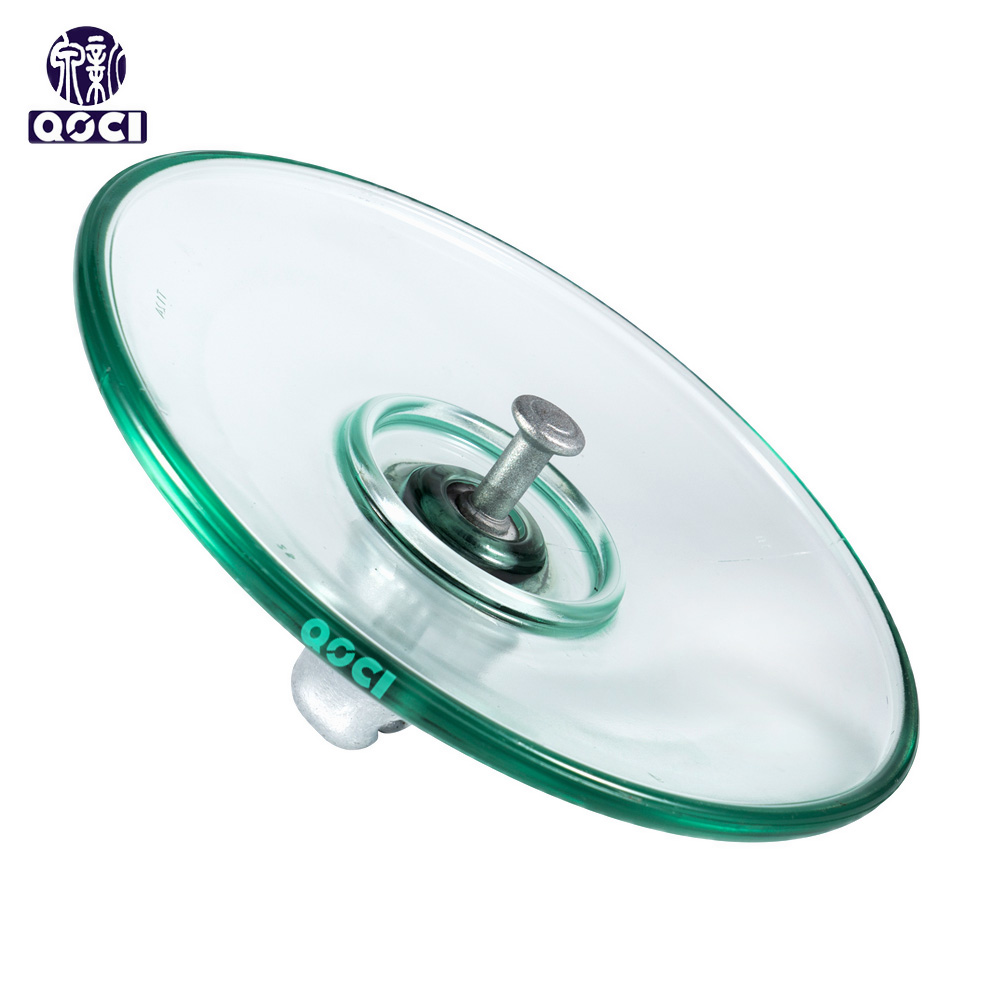

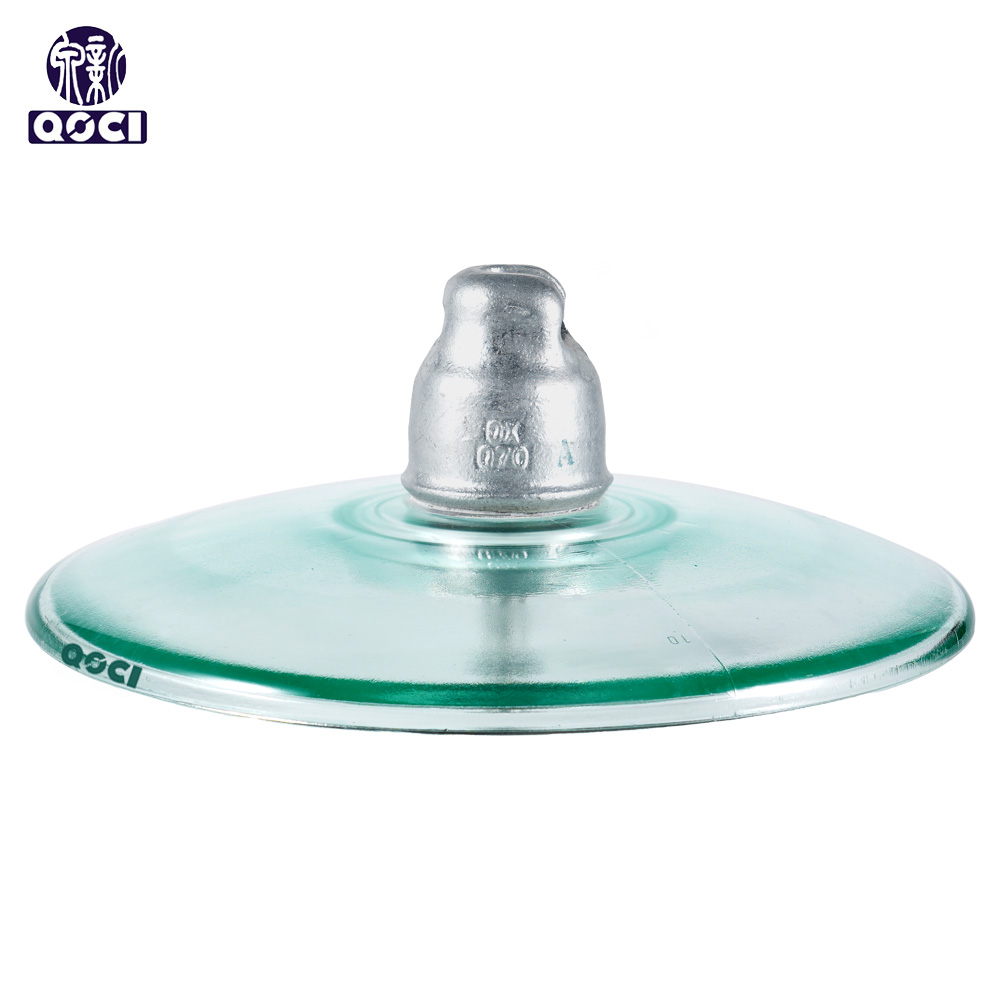

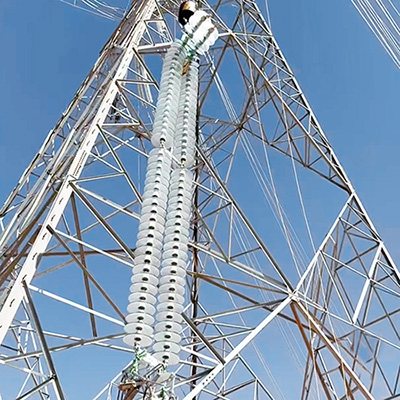

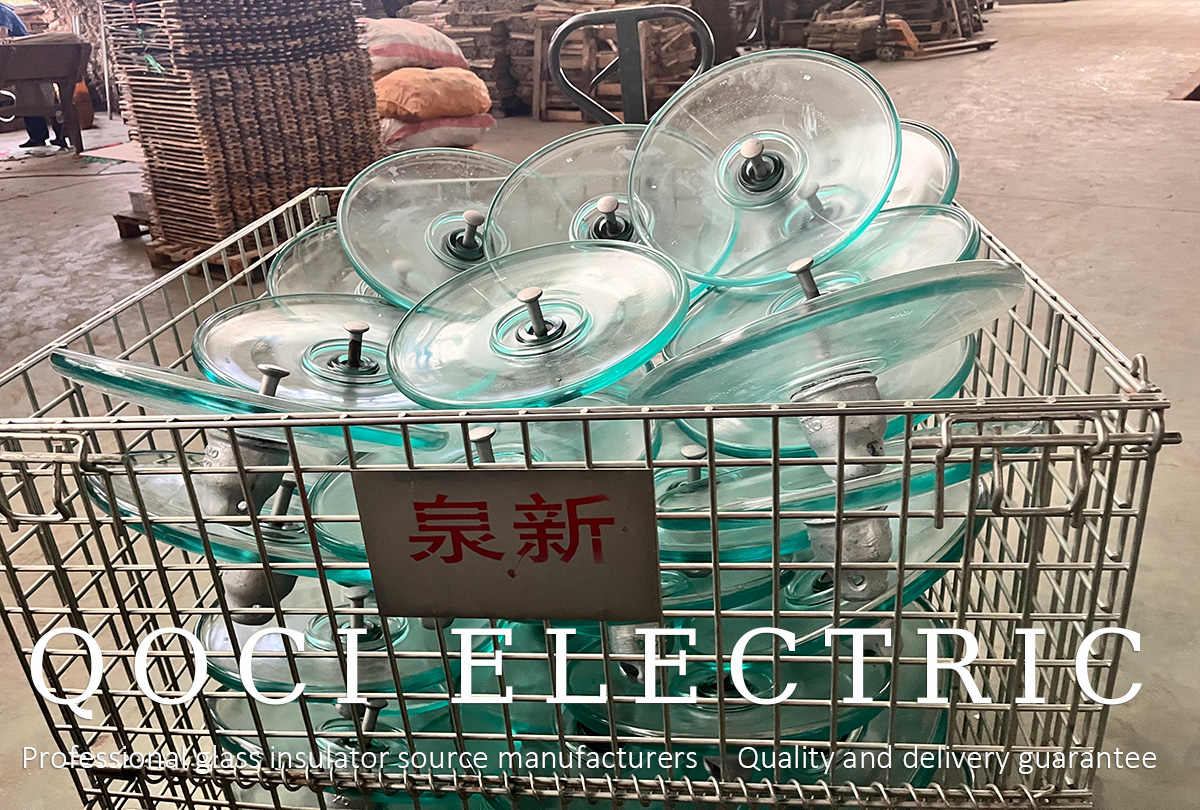

U70BLA 146/380/365 Glass Insulator
The main purpose of aerodynamic glass insulators is to provide insulation and mechanical support for high-voltage transmission lines.
Their specially designed shape effectively reduces wind resistance and prevents the formation of continuous water films during rainy and windy conditions, thereby improving pollution flashover voltage and wind resistance.
- Brand: QOCI
- Reference designation U70AD
- Catalog ID: UG70B146/365A
- Type: Standard Type
- Material: Glass Dielectric ， Forged steel cap & pin
- Place of Origin: Jiangxi
Product Information
IEC Stand :U70BLA
| U | Disc Suspension Insulator |
| 70 | Mechanical failing load of 70kN |
| B | Ball And Socket Type |
| L | Longer steel pin，Assembled to achieve a product structural height of 146mm. |
| A | Aerodynamic Type |

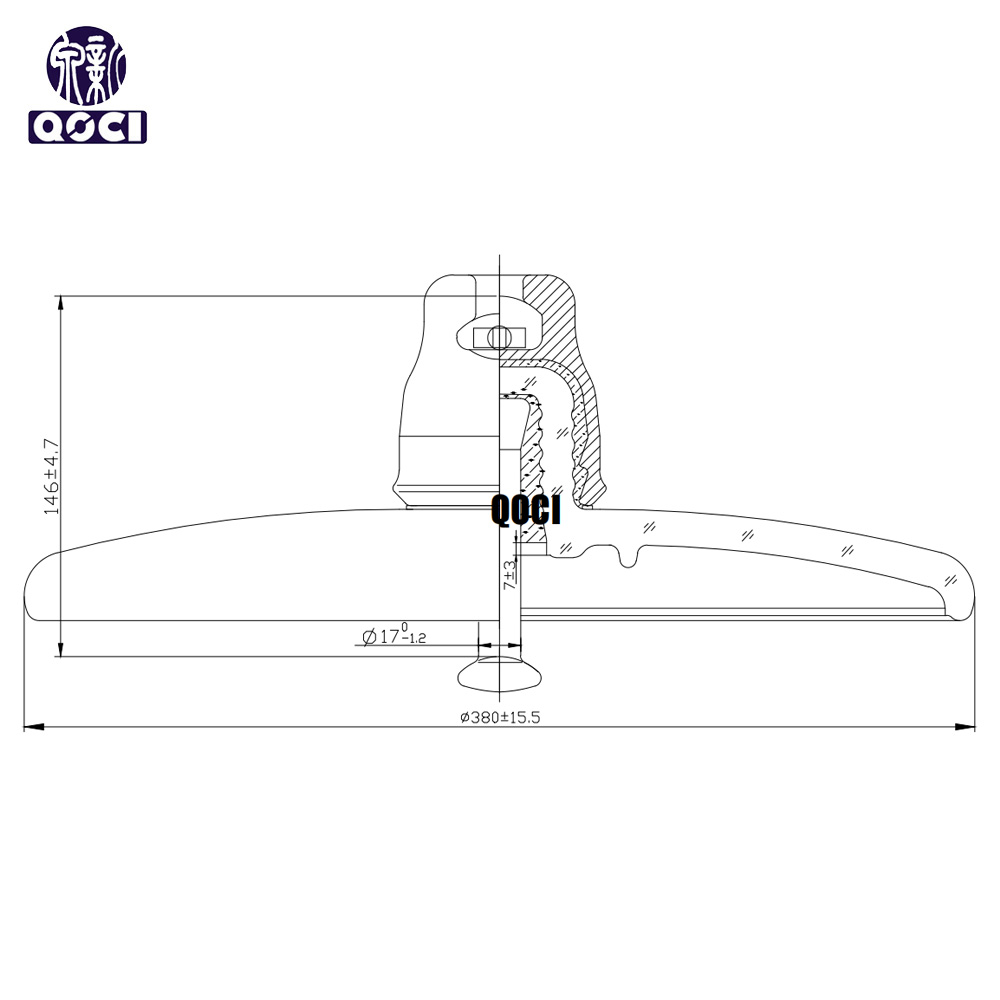

Dimensional data
|
Spacing(S) |
146mm |
|
Diameter(D) |
380mm |
|
Creepage distance (L) |
365mm |
|
Socket coupling |
16mm |
Mechanical values
|
Mechanical failing load |
70kN |
|
Mechanical residual strength |
56kN |
Electrical Values
|
Wet power frequency withstand voltage |
45kV |
|
Dry lightning impulse withstand voltage |
90kV |
|
Power frequency puncture voltage |
130kV |
Radio-influence Voltage
|
RIV test voltage rms to ground Maximum RIV at 1000 kHz: |
10 kV 50 μV |
|
Corona visual lest P/C |
18/22 KV |
|
Power frequency electric arc voltage |
0.12s/20kA |
Packing information
|
Net weight |
5.3kg |
|
Carton Quantity: |
2pcs |
Industry Standard(s)
Manufactured accordance with IEC60383-1:1993，MOD / GB/T1001.1
