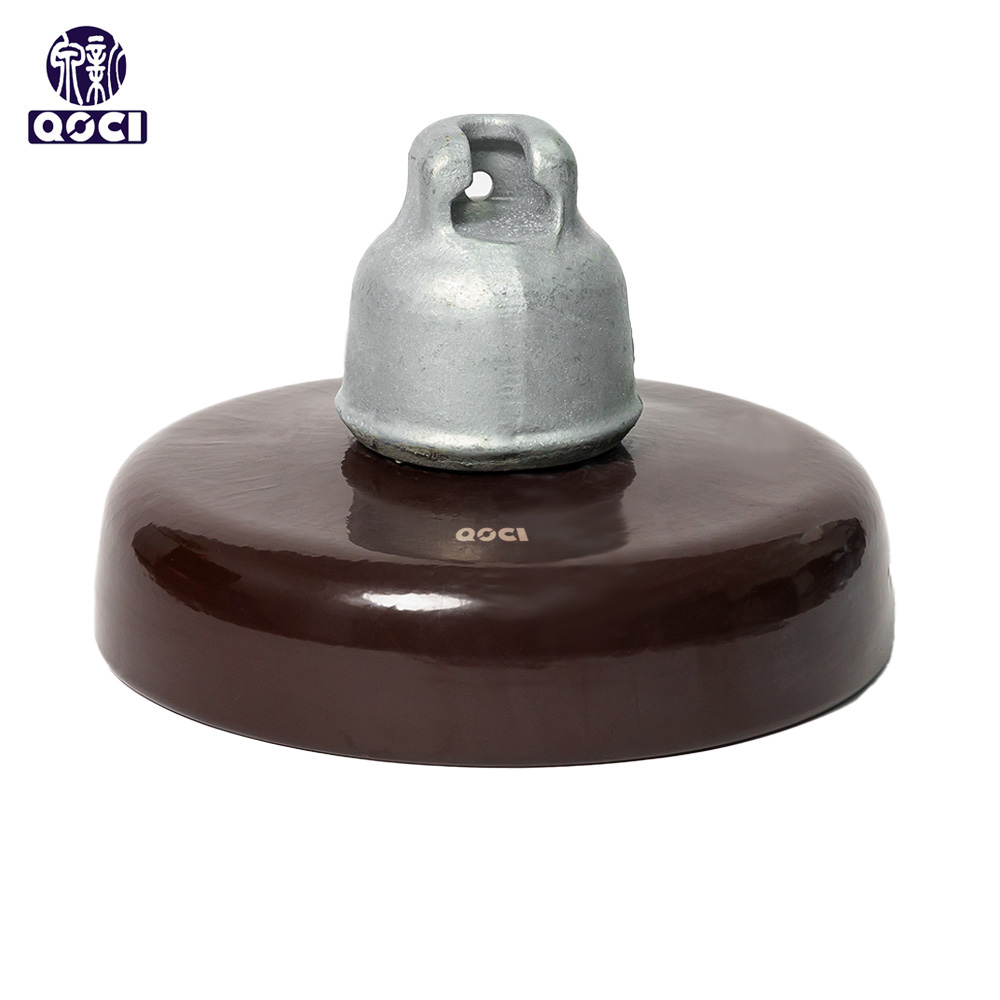

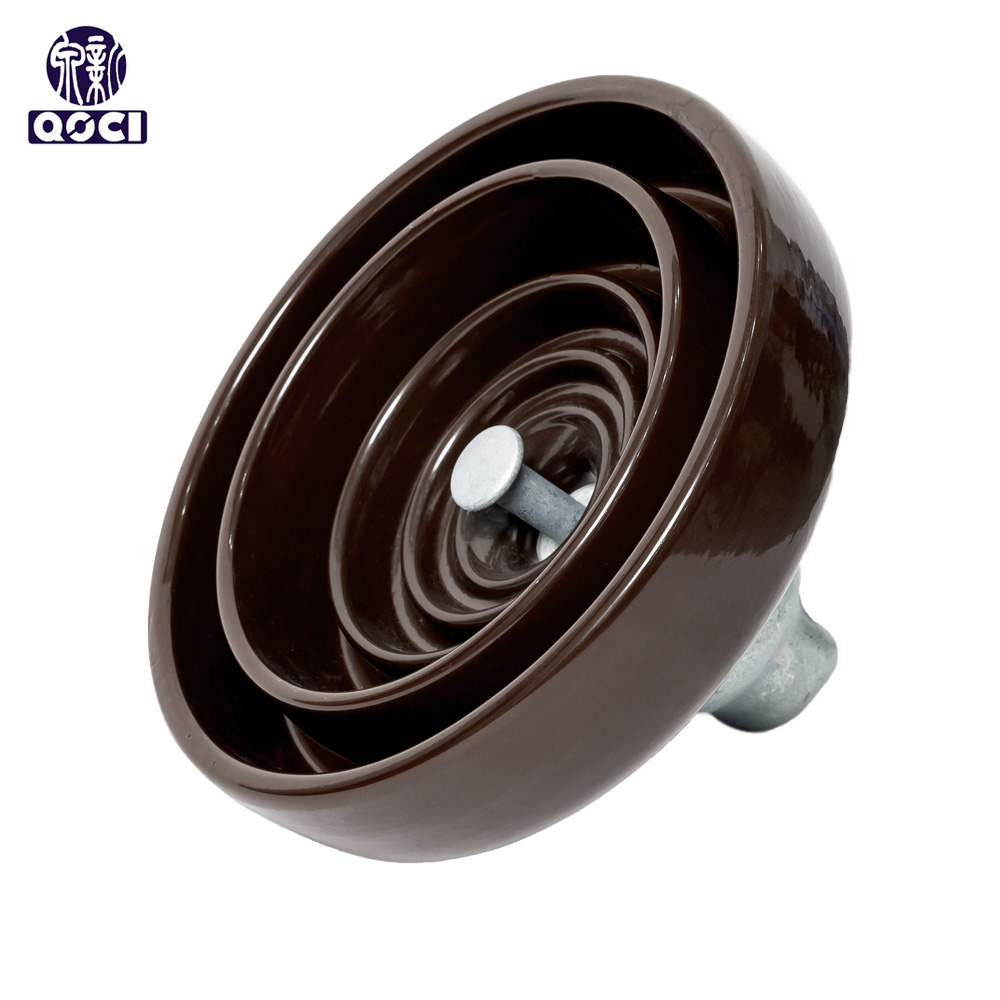

U120BP Fog Type Porcelain Insulator

120kn Anti-Fog Disc Type Porcelain/Ceramic Insulator Disc Suspension Porcelain Insulator U120BP/146H
U120BP/146H is a universal model used by IEC, corresponding to models from Chinese manufacturers such as LXHP4-120, LXHP-120, FC120P/146, etc.
This type of insulator is widely used in overhead transmission lines, especially suitable for coastal areas, heavy industrial areas, areas with severe air pollution or high humidity such as foggy and dusty areas, as well as high altitude and high voltage level lines. When selecting, it is necessary to determine the required creepage distance and umbrella skirt structure based on the pollution level of the specific line

Brand: QOCI
Catalog ID: U120BP/146H
Type: Suspension Insulator
Material: Porcelain
Place of Origin: Jiangxi

Product Details

Dimensional data

Spacing (S)

146±4.6mm

Diameter (D)

280±12.7mm

Creepage Distance (C/D)

450mm

Ball&Socket size:

16mm

Mechanical values

Electro mechanical faiing load:

125kN

Electrical ratings

Power frequency puncture voltage:

120kV

Power frequency withstand voltage(Wet):

5 pieces of string	140kV
uniwafer	45kV

Dry lightning impulse withstand voltage:

5 pieces of string	500kV
uniwafer	120kV

Radio-influence Voltage

RIV test voltage rms to ground

Maximum RIV at 1000 kHz

10kV

50μV

Corona visual lest P/C

18/22KV

Temperature heat endine:

-40℃~+40℃

Packing information

Approx. net weight per unit

5.4kg

No. of insulators wooden crate

Industry Standard(s)

Tests and dimensional tolerances are in accordance with GB/T1001.1-2021.

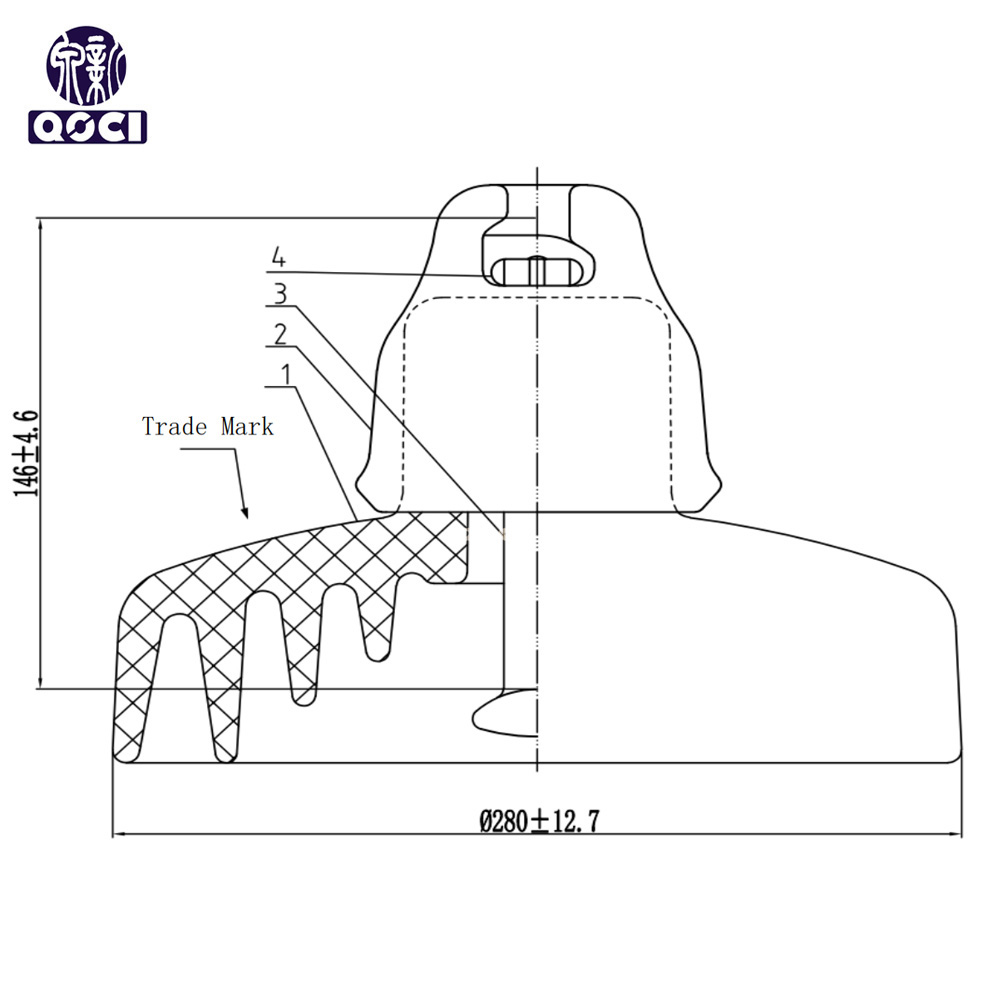

Drawing

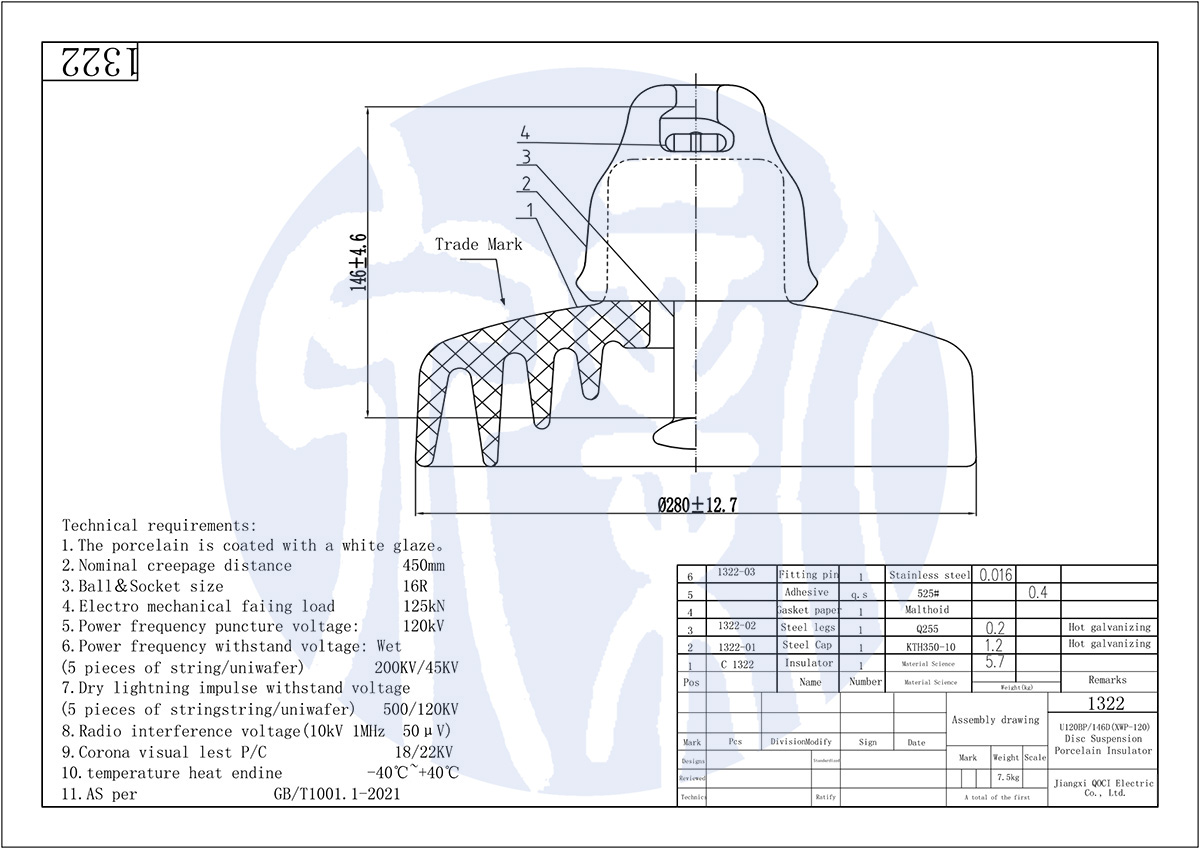

Disc Insulator Anti Type-U120BP-146-450.jpg
