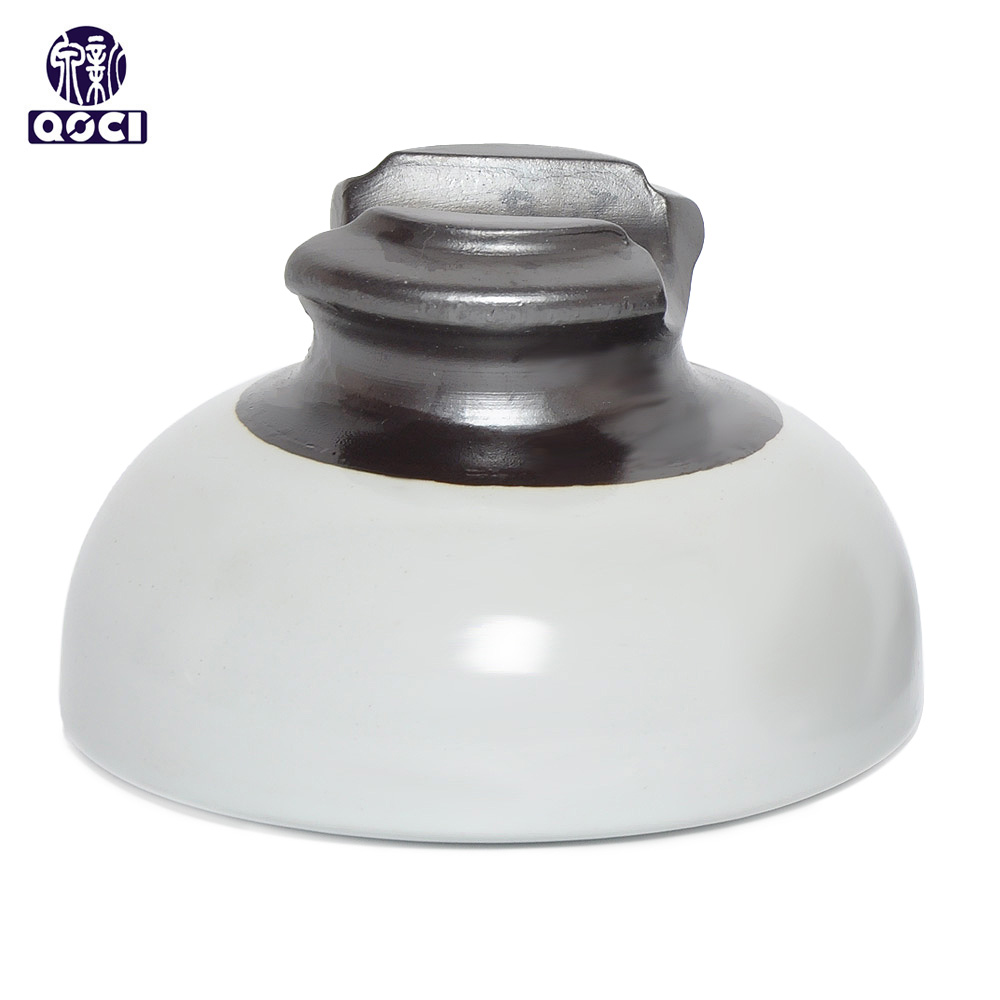

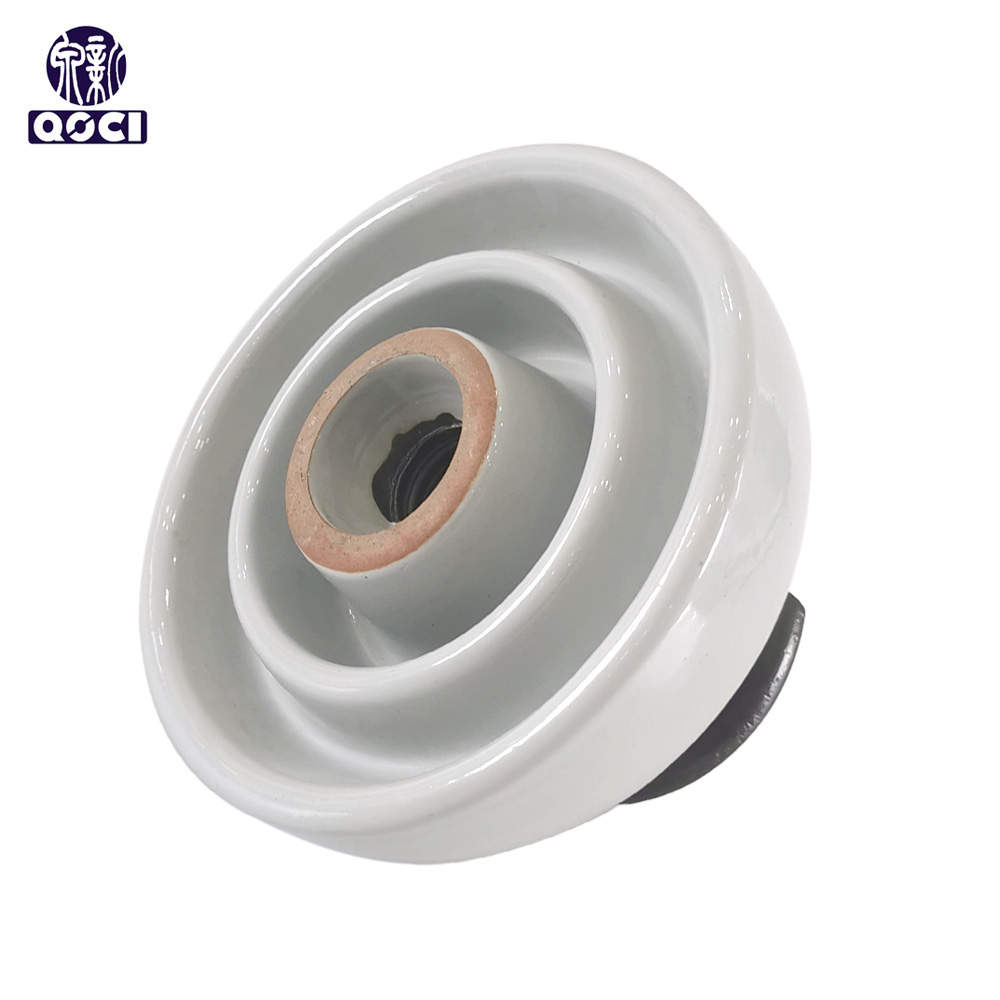

ANSI 55-6 Pin Type Porcelain Insulator
- ANSI 55-6 pin porcelain insulators are mainly used for medium voltage distribution lines.

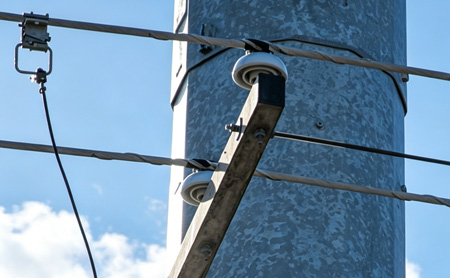

- Ceramic pin insulators are installed on the needle sockets on the cross arms of electric poles.
- The upper end of the insulator is equipped with a groove, through which the wire passes and is tied to the insulator with a wire of the same material as the wire.
- Capable of withstanding physical stress and environmental factors, prolonging service life.
- Designed to perform under varities of weather conditions.
- Brand: QOCI
- Catalog ID: ANSI 55-6
- Type: Pin Insulator
- Material: Porcelain
- Place of Origin: Jiangxi

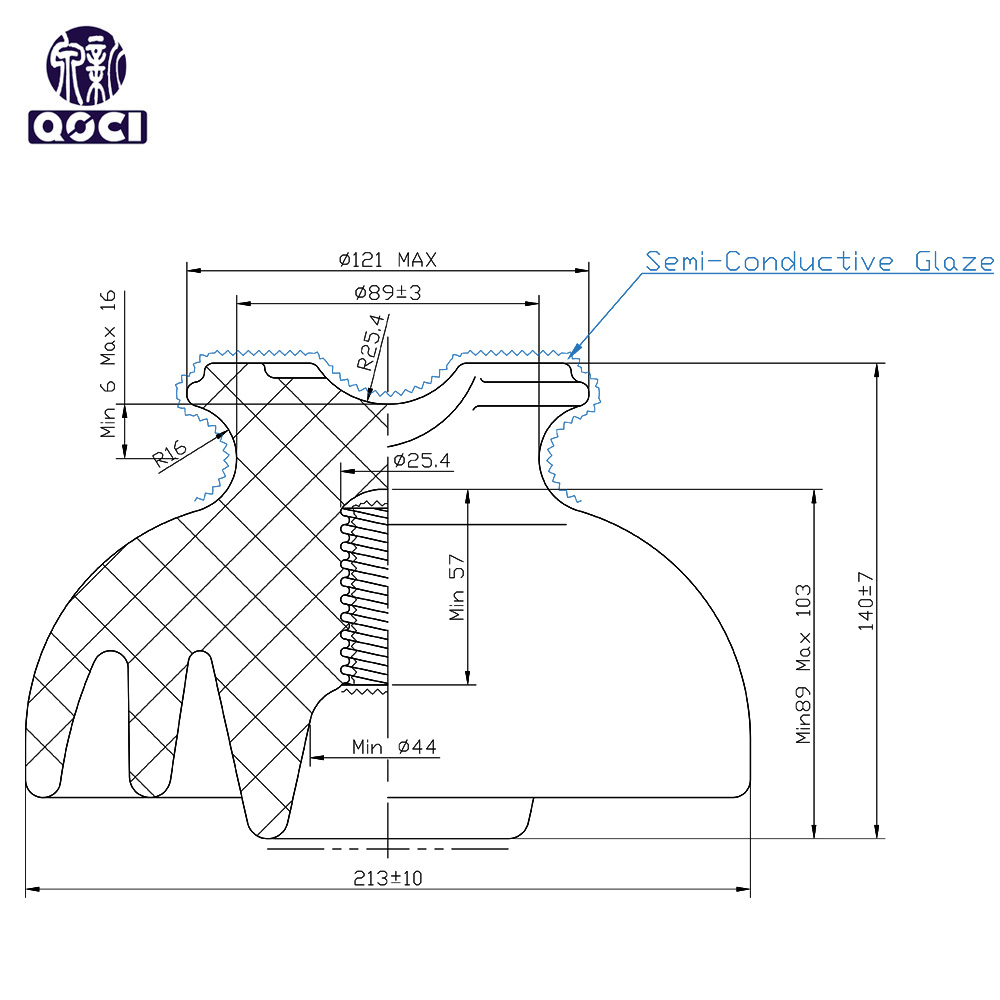

Dimensional data
|
Spacing (S) |
8 1/2 inch 140 mm |
|
Diameter (D) |
8 3/8 inch 213 mm |
|
Leakage distance (C/D) |
15 inch 381 mm |
|
Dry arcing distance： |
8 inch 203 mm |
| Minimum pin height: |
7 1/2 inch 190 mm |
Mechanical values
|
Combined M&E strength: |
3,000 lb 13.3 kN |
Mechanical values
|
Combined M&E strength: |
3,000 lb 13.3 kN |
Electrical Values
|
Low frequency dry flashover voltage: |
100 kV |
|
Low frequency wet flashover voltage: |
50 kV |
|
Critical impulse flashover voltage, positive: |
150 kV |
|
Critical impulse flashover voltage, negative: |
170 kV |
|
Low frequency puncture voltage: |
135 kV |
|
Type application voltage: |
23 kV |
Radio-influence Voltage
|
RIV test voltage rms to ground Maximum RIV at 1000 kHz |
22 kV 100 μV |
|
Corona visual lest P/C |
18/22 KV |
Packing information
|
Approx. net weight per unit |
9.1 lb 4.1 kg |
|
Pallet Quantity |
144 |
Industry Standard(s)
Manufactured according to ANSI C29.5
