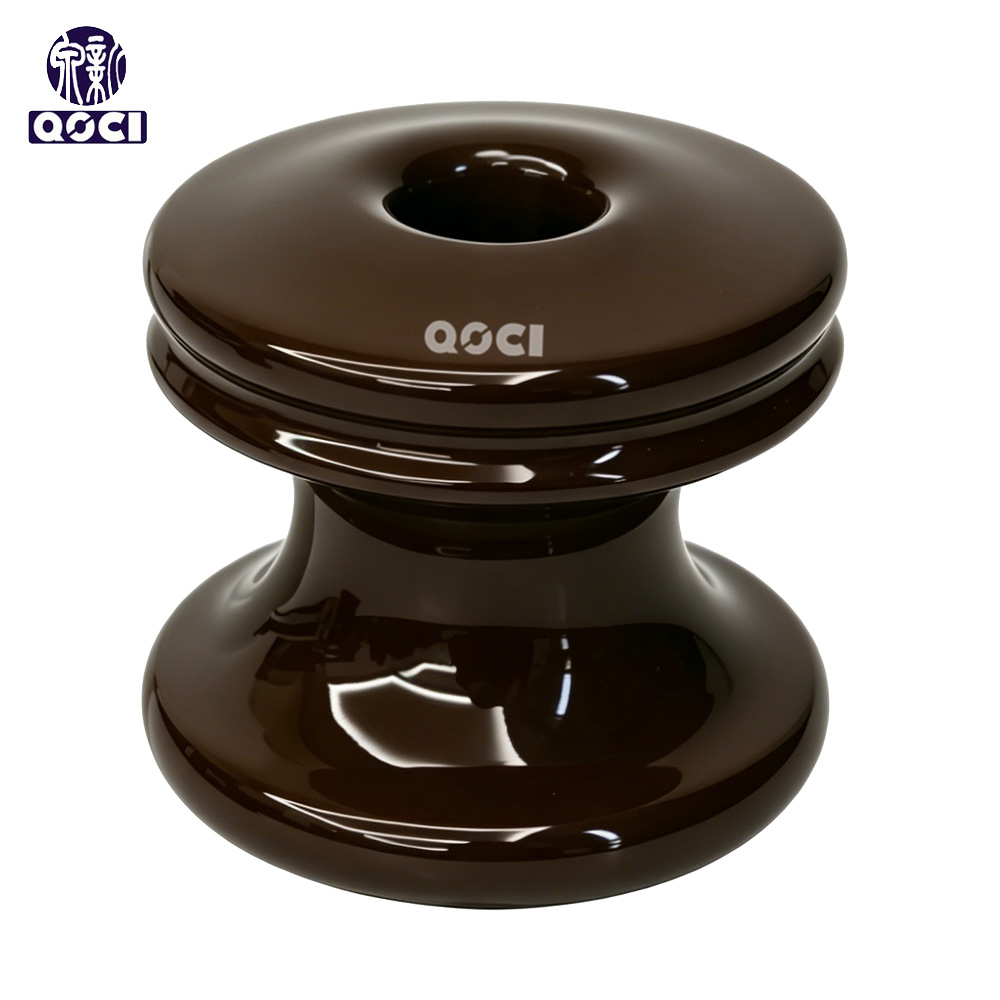

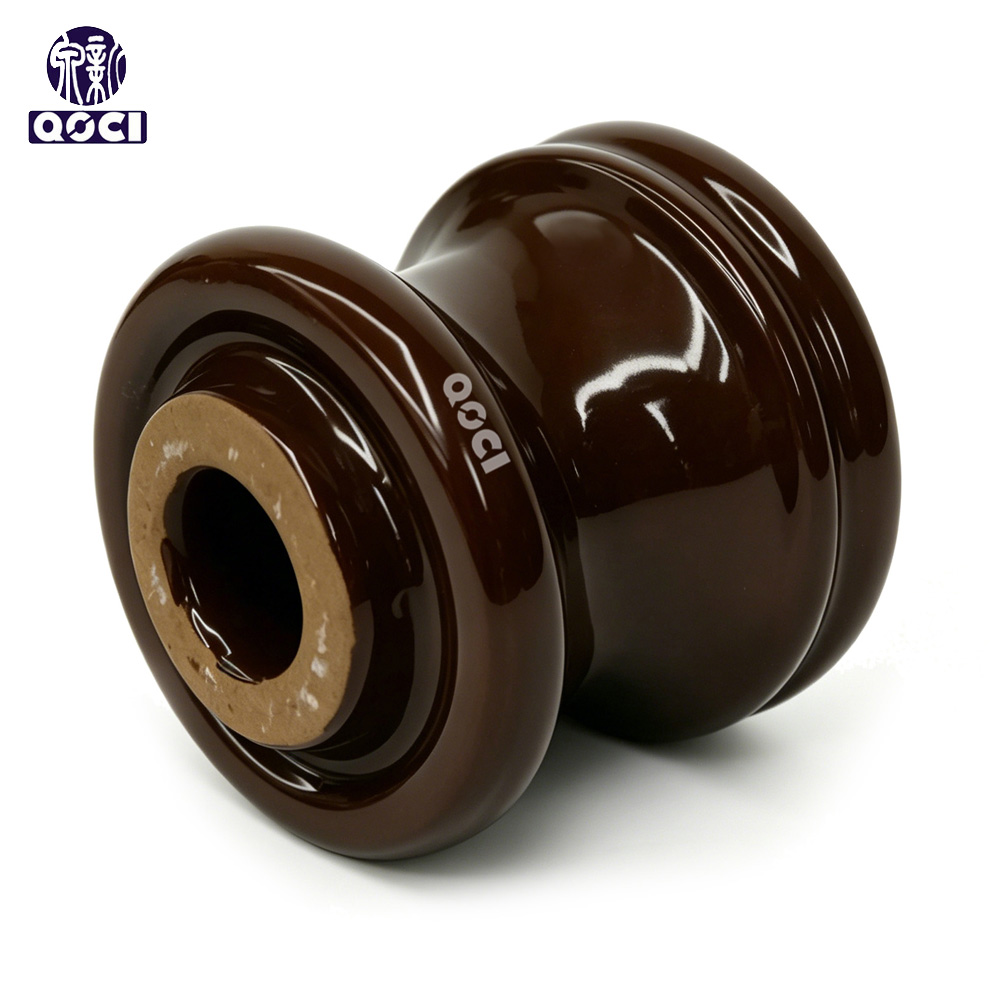

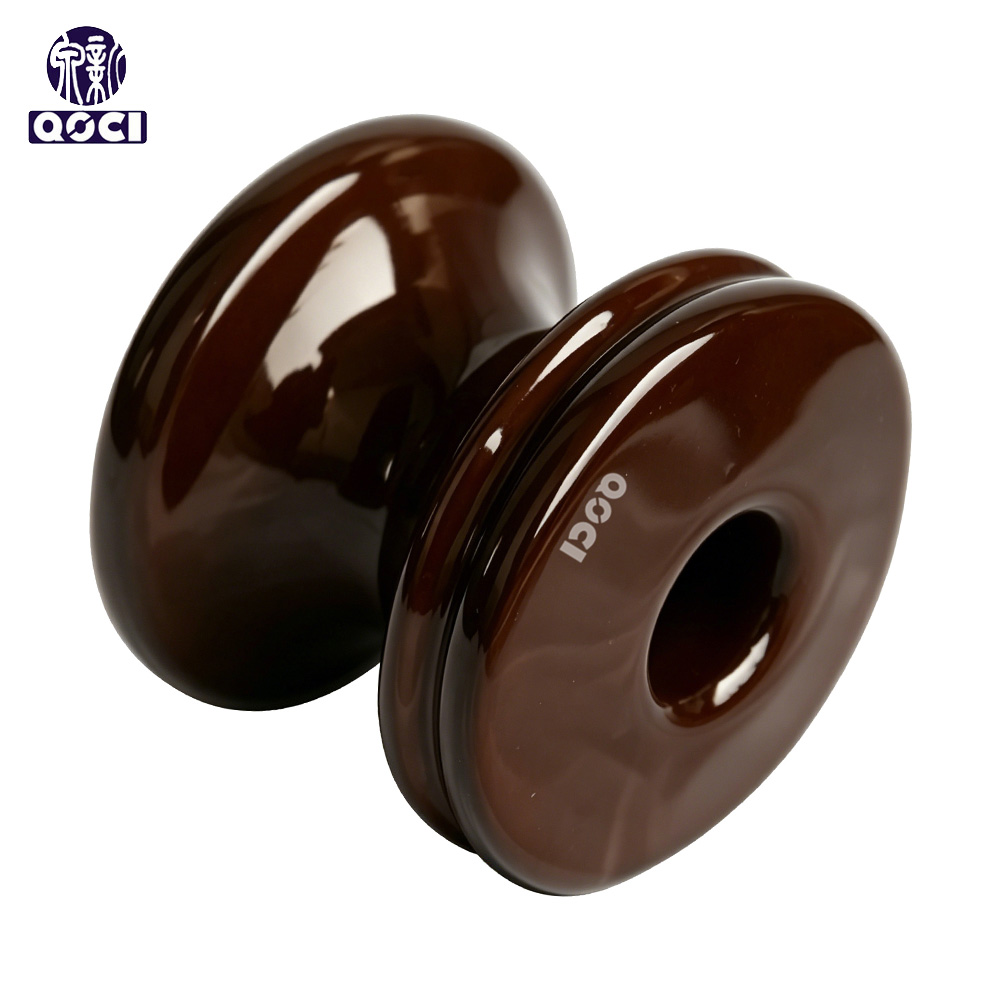

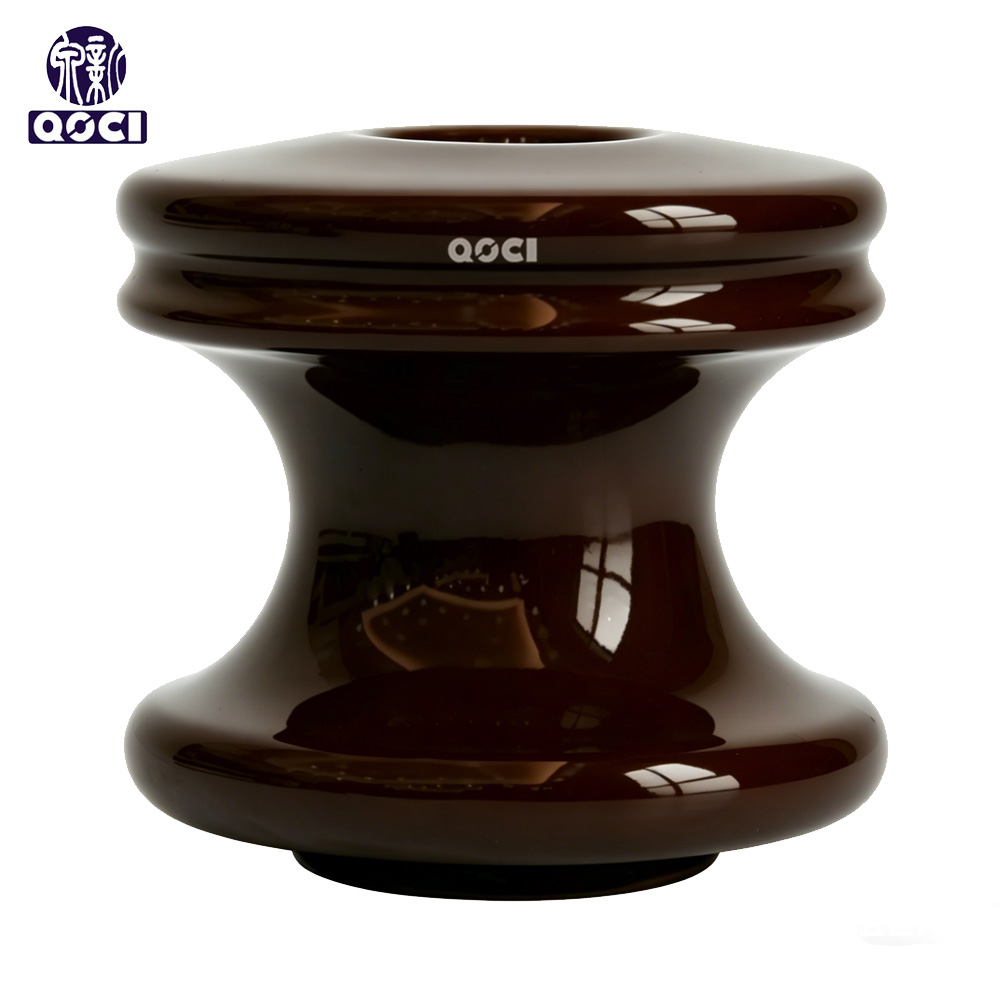

ANSI 53-2 Spool Insulator
High-Specification ANSI 53-2 Porcelain Spool Insulator for Low Voltage

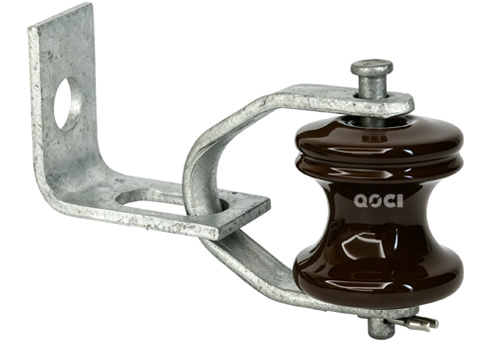

The spool insulator is also called a shackle insulator or shackle type insulator, it is a type of low voltage insulator usually assembled with upset bolts, secondary racks, or secondary clevises to provide insulation for the conductors on the pole.
- Brand: QOCI
- Catalog ID: ANSI 53-2
- Type: Spool Insulator
- Material: Porcelain
- Place of Origin: Jiangxi

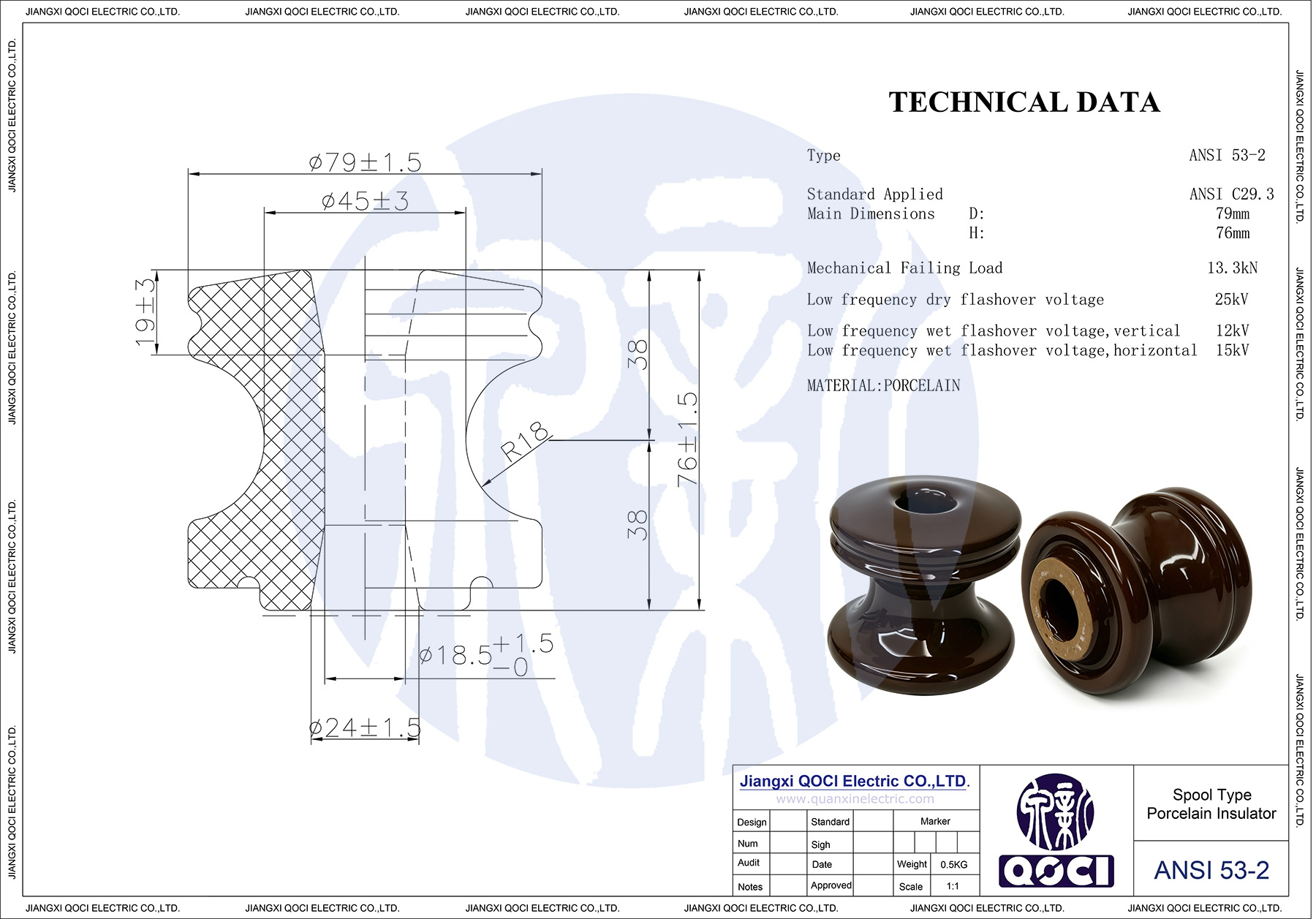

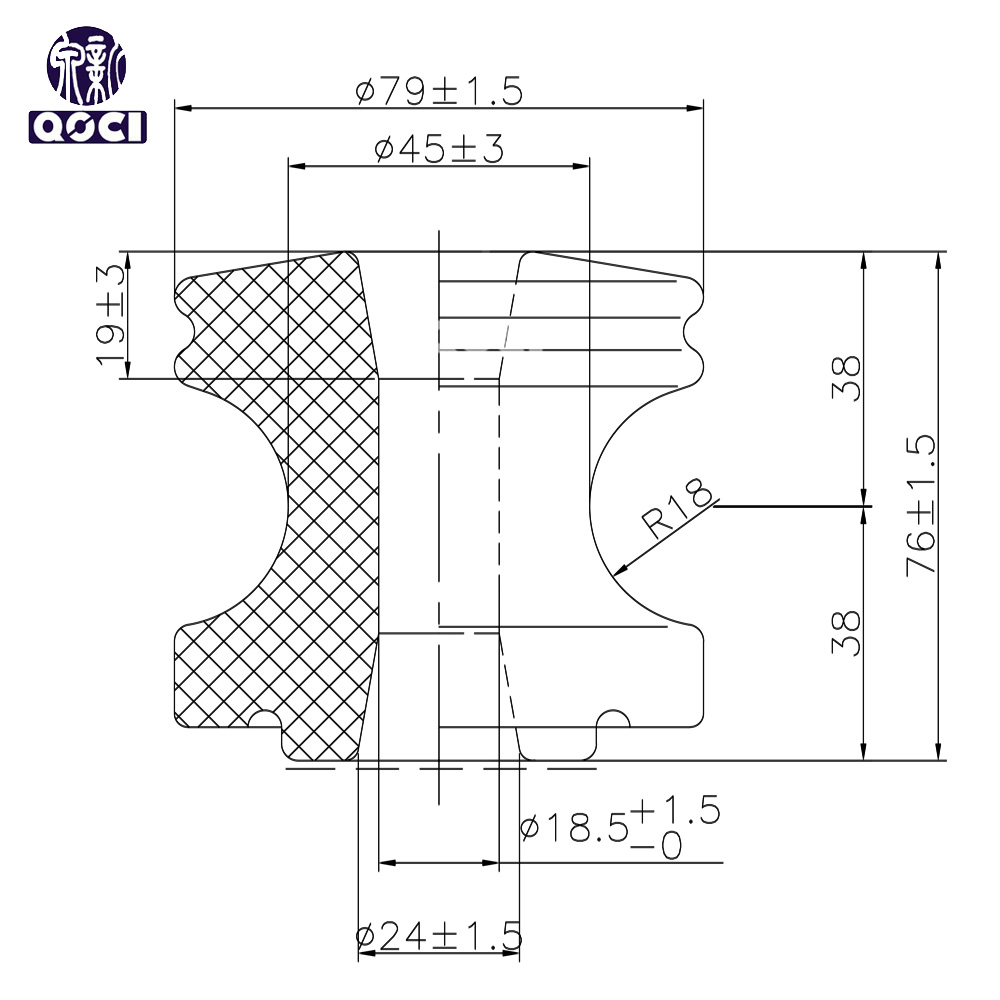

Dimensional data
|
Spacing (S) |
3 inch 76 mm |
|
Diameter (D) |
3 1/9 inch 79 mm |
Mechanical values
|
Combined M&E strength: |
3,000 lb 13.6 kN |
Electrical Values
|
Low-frequency dry flashover voltage: |
25 kV |
|
Low-frequency wet flashover, vertical ： |
12 kV |
|
Low-frequency wet flashover voltage, horizontal： |
15 kV |
Packing information
|
Approx. net weight per unit |
0.5 kg |
|
Carton Quantity |
60 pcs |
|
Pallet Quantity |
1440 pcs |
Industry Standard(s)
Manufactured according to ANSI C29.3
