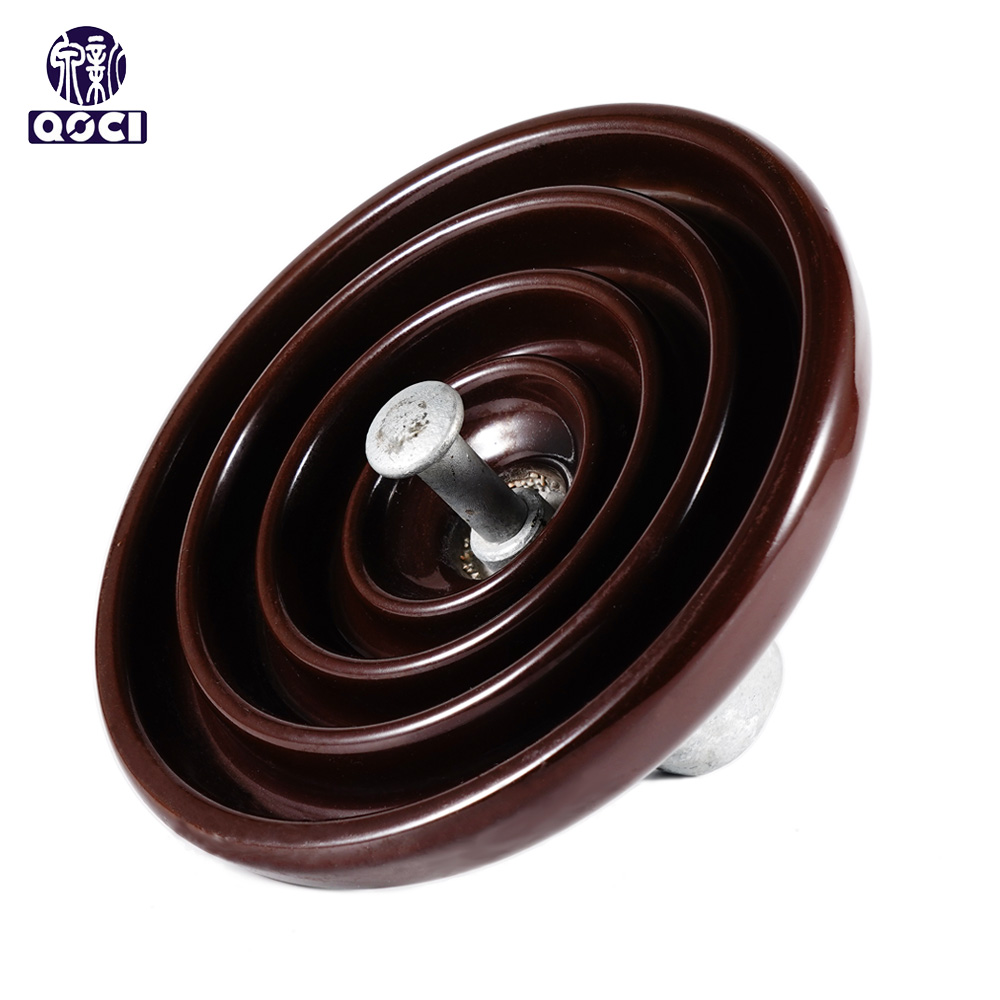

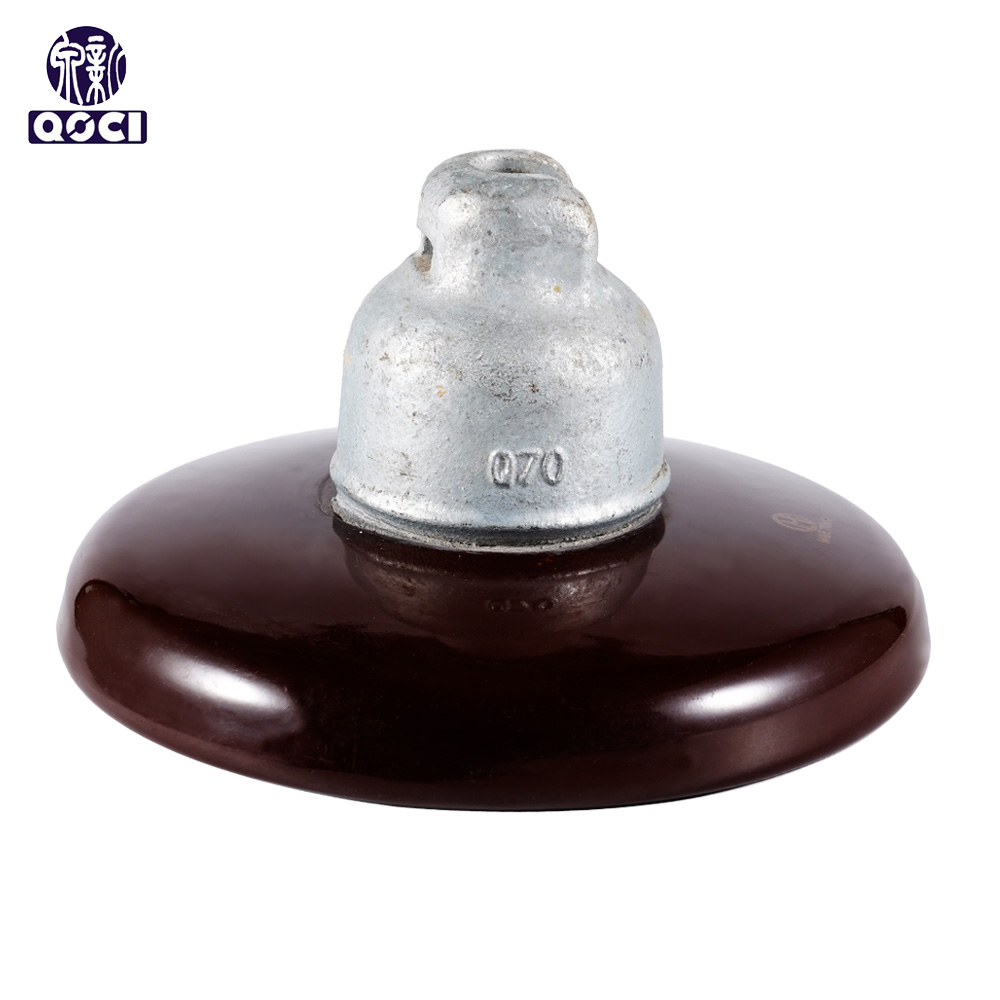

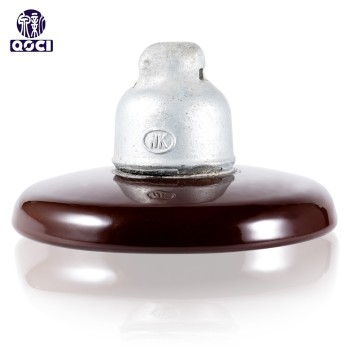

ANSI 52-3 Porcelain Insulator
The ANSI 52-3 is a 70kN suspension porcelain insulator for high-voltage overhead transmission lines. Multiple units are connected in series to form insulator strings, providing both electrical insulation and mechanical support.

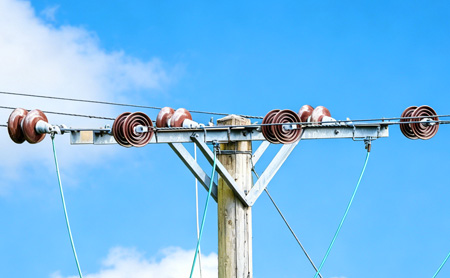

A single insulator unit has limited insulation capacity, so multiple units are connected in series with hardware fittings to create an insulator string. The higher the voltage rating, the greater the number of units needed.
- Brand: QOCI
- Catalog ID: ANSI 52-3
- Type: Suspension Insulator
- Material: Porcelain
- Place of Origin: Jiangxi
Dimensional data
|
Spacing (S) |
5 3/4 inch 146 mm |
|
Diameter (D) |
10 inch 254 mm |
|
Leakage distance (C/D) |
12 5/8 inch 320 mm |
|
Dry arcing distance： |
7 3/4 inch 197 mm |
| Coupling size： |
16 mm Type B |
Mechanical values
|
Combined M&E strength: |
15,000 lb 67 kN |
| Impact strength : |
55 inch-lb 6.2 N·m |
| Routine proof test load: |
7,500 lb 33.3 kN |
| Time load test value: |
10,000 lb 44.5 kN |
| Maximum working load |
7,500 lb 33.3 kN |
Electrical Values
|
Low frequency dry flashover voltage: |
80kV |
|
Low frequency wet flashover voltage: |
50kV |
|
Critical impulse flashover voltage, positive: |
125kV |
|
Critical impulse flashover voltage, negative: |
130kV |
|
Low frequency puncture voltage: |
110kV |
Radio-influence Voltage
|
RIV test voltage rms to ground Maximum RIV at 1000 kHz |
10kV 50μV |
|
Corona visual lest P/C |
18/22KV |
Packing information
|
Approx. net weight per unit |
5.2kg |
|
No. of insulators wooden crate |
6 |
Industry Standard(s)
Tests and dimensional tolerances are in accordance with ANSI29.2

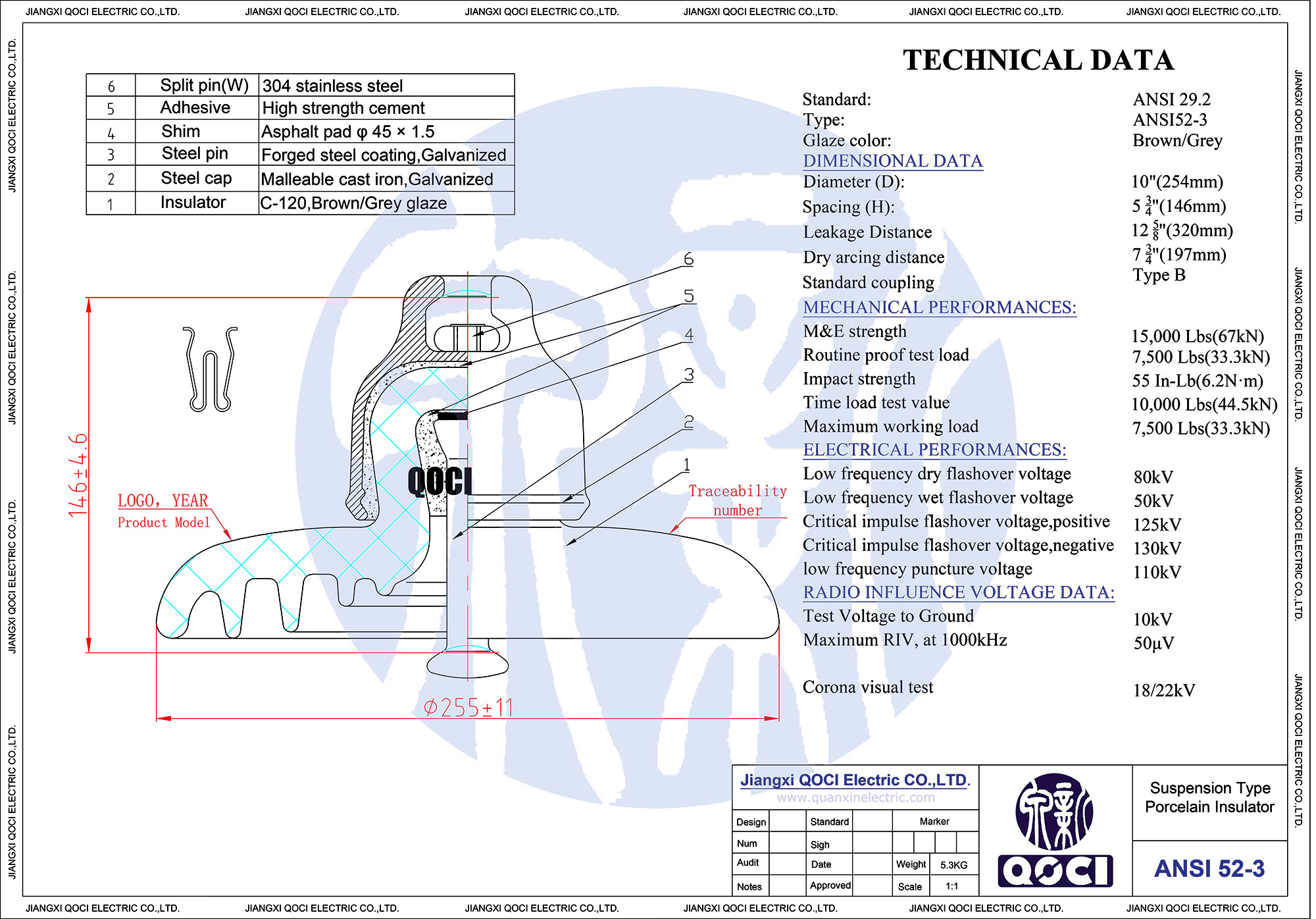

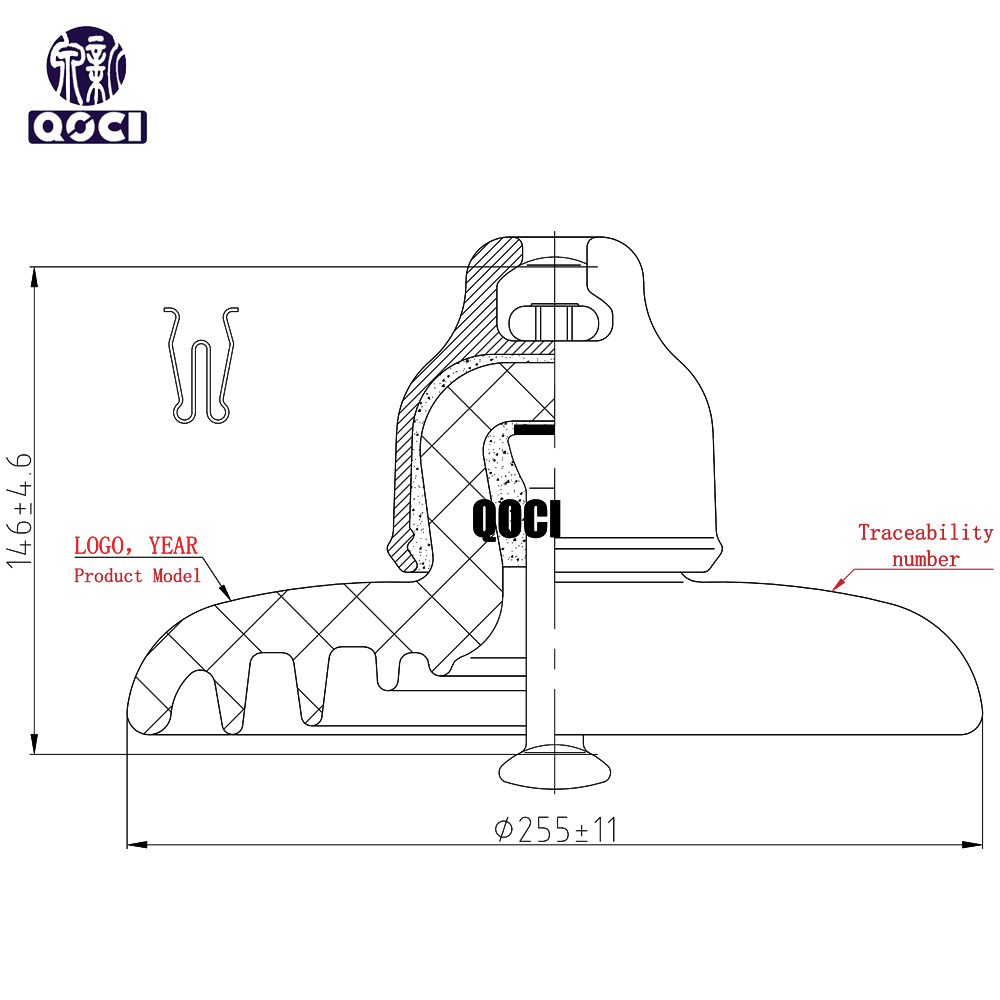

Drawing
